Universal Automated Control Systems

UET Universal electronic terminal kiosk


A universal electronic terminal kiosk (UET) is a case with a built-in controller, a display and a set of additional equipment depending on the tasks to be performed.

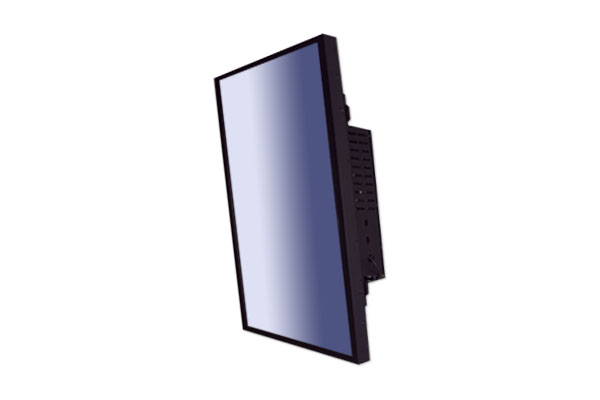

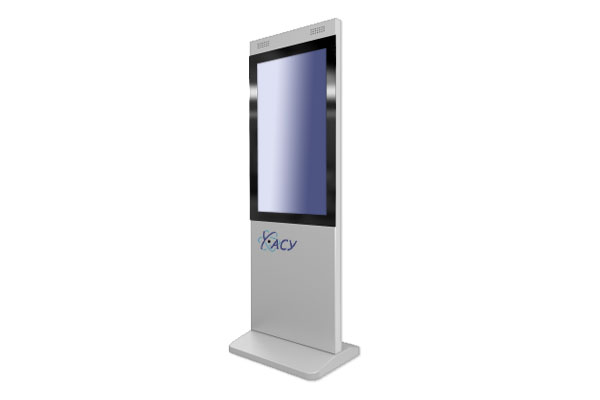

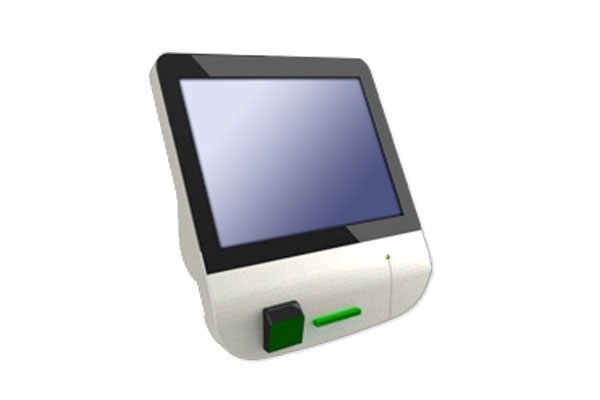

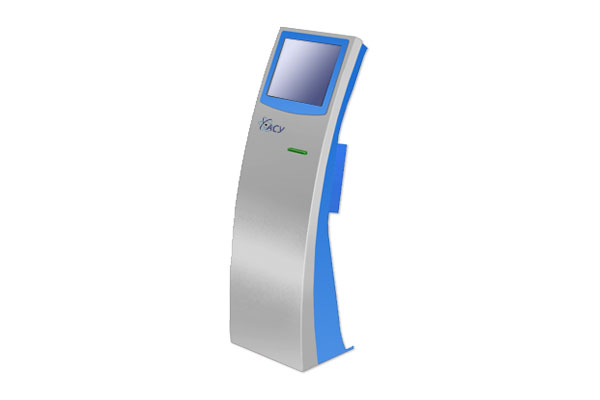

The terminal building allows you to either install it on the floor or hang it on the wall depending on the modification.

The electronic terminal transmits data via Ethernet, Wi-Fi, Bluetooth, GSM, etc.

Functional:

  • Information kiosk.
  • Interactive storefront.
  • Terminal of electronic queue.
  • Automated checkout.
  • Industrial terminal.

Specifications:

Model:
UASU UET
Architecture, processor:
Operating system:
Linux
RAM:
2GB, DDR3
Storage:
16GB eMMC / SATA HDD
Power supply:
AC: 230V
Antenna socket:
SMA-F
USB Interface:
4 x USB 2.0
Video output:
1 x HDMI, 1 x LVDS
Audio output:
3.5mm audio jack, HDMI, LVDS
Ethernet Interface:
1 x 10/100/1000 Mbps
Wi-Fi:
802.11 b/g/n
Bluetooth:
4.0 Dual mode

Options:

Touch screen:
* Touch / 6mm
Wireless card reader:
RFID / NFC
Camera:
Yes
Audio Columns:
Yes
