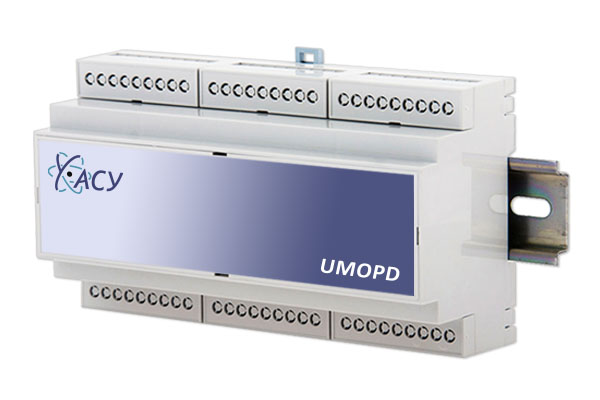

UMOPD Digital controller


Universal data processing and transmission module (UMOPD) is a digital programmable controller based on the high-performance ARM architecture quad-core processor Cortex-A7 operating at a frequency 1.2 GHz and Linux operating system.

This is a universal piece of equipment capable of performing virtually any task in the field of automation, processing and transmission of data from peripheral devices and the Internet service through digital communication channels.

Additional options can also be installed in the UMOPD device: RS485, RS232, CAN, LoRa, ZigBee, GSM, WiFi, Bluetooth, Ethernet, etc.

Specifications:

Model:
UASU UMOPD
Architecture, processor:
Operating system:
Linux
RAM:
256 - 512MB, DDR3
Storage:
8 - 72GB, eMMC / SSD
Power supply:
DC: 5V, 2A
USB Interface:
3 x USB 2.0, 1 x OTG
Ethernet Interface:
Yes
UART interface:
3 x UART (plug-in modules)
Hardware watchdog
Yes
DIN rail mounting:
9 Modules
Working temperature range:
-40 ~ +85 °C

Options:

Wi-Fi:
802.11 b/g/n, client / access point
Bluetooth:
4.0 Dual mode
Real Time Clock (RTC):
Yes
RS485 / RS232 / CAN Interfaces:
up to 3pcs with galvanic isolation or not

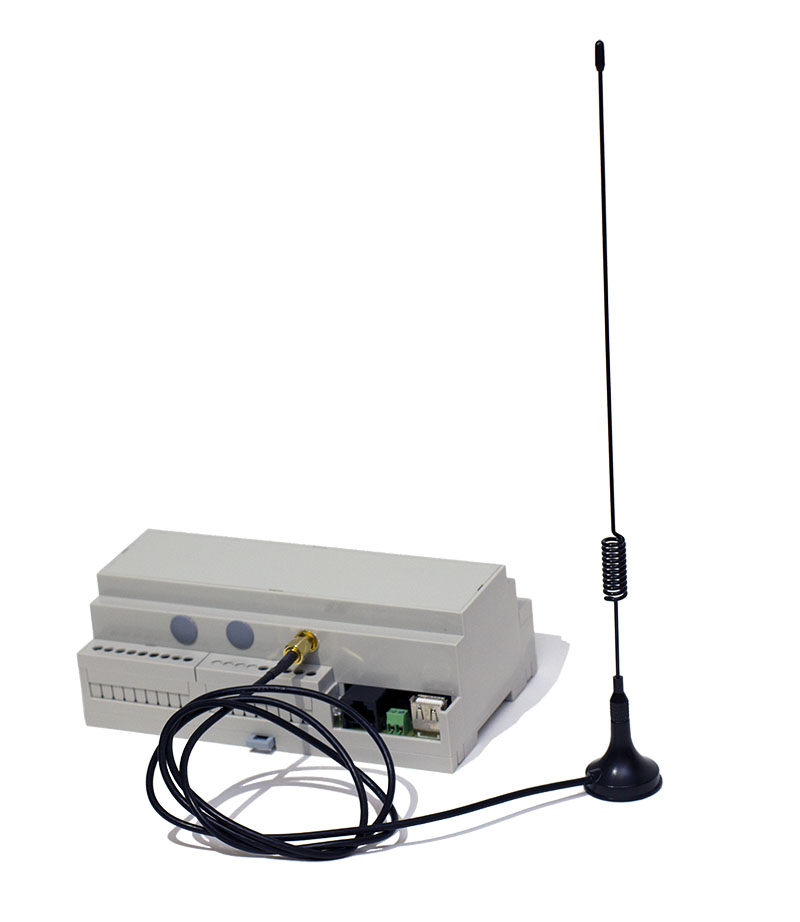

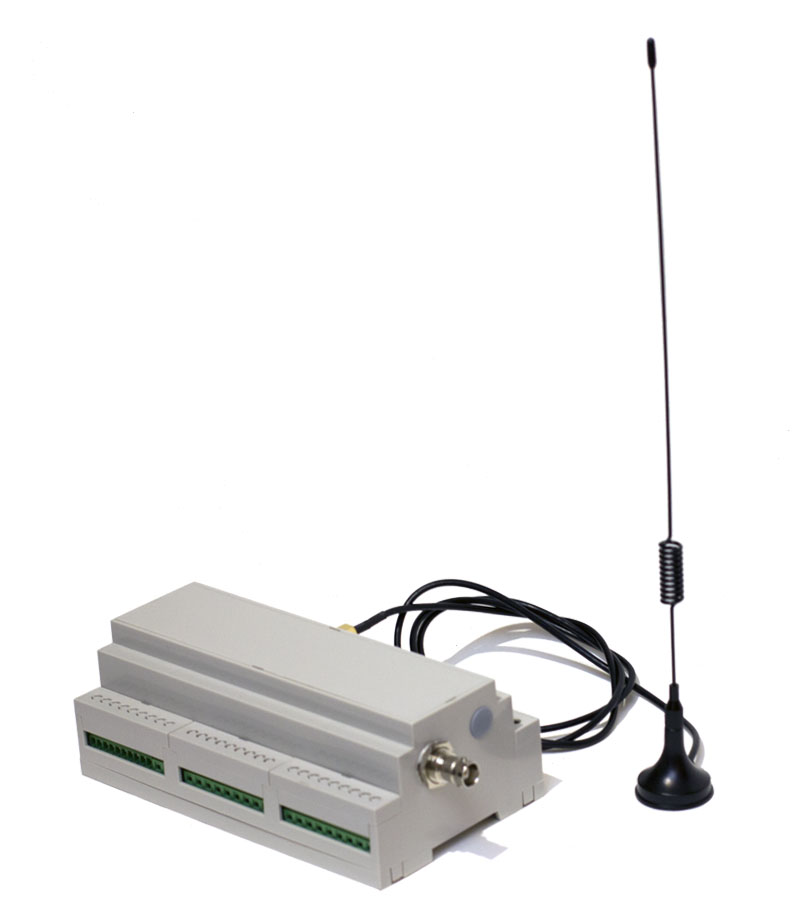

GSM interface:
2G / 3G / 4G
LoRa / ZigBee Interfaces:
up to 3pcs
