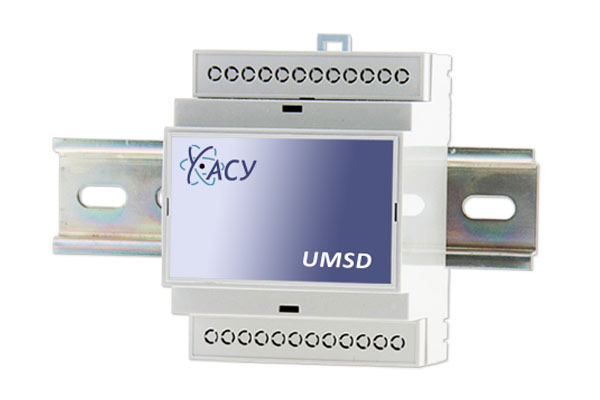

UMSD Analog-digital controller
The Universal Data Acquisition Module (UMSD) is a passive analog-digital programmable controller based on the AVR architecture and the megaAVR microcontroller from Microchip.
To this module, it is possible to connect a large number of analog and digital sensors, peripheral equipment using analog and discrete inputs and outputs, as well as organize control of PWM channels.
The UMSD device has an RS485 / RS232 / CAN digital serial interface for communicating with the UMOPD device.
It is also possible to install an additional wireless interface LoRa / ZigBee
Specifications:
Model:
UASU UMSD
Architecture, processor:
RAM:
2Kb
Storage:
32Kb
Power supply:
DC: 5V, 40 mA
RS485 / RS232 / CAN Interface:
1pc with galvanic isolation or not
Discrete inputs:
14pcs
Analog Inputs:
8pcs
PWM Outputs:
6pcs
Hardware watchdog
Yes
DIN rail mounting:
4 Modules
Working temperature range:
-40 ~ +85 °C
Options:
LoRa / ZigBee Interfaces:
1pcs
